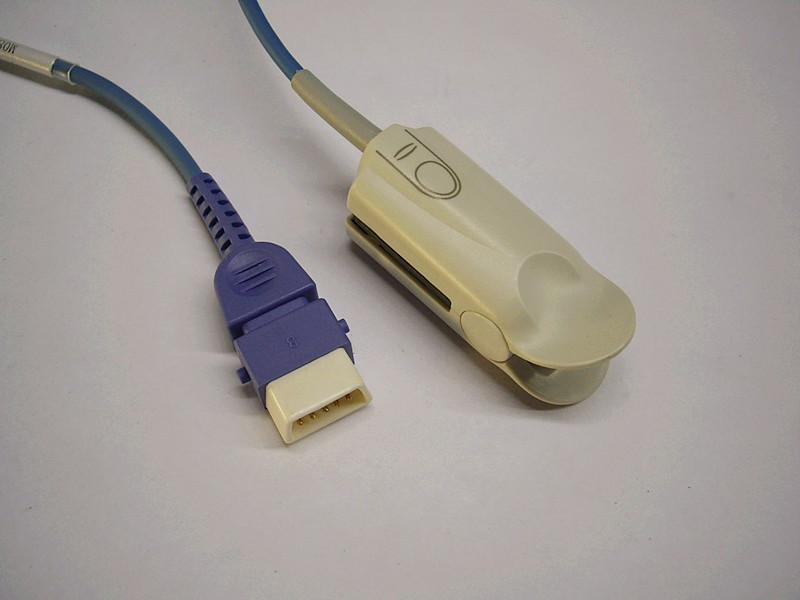

Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With
3300/3301/ 3302/3303/3304/3401
1. Features
Double shield structures
Copper Alloy, Additional tensile
Improve the anti-interference performance
Assure the signal accurate
Excellent Bio-compatible
The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement.
2. Products description
1:Enriroment Temperature: 5°C-40°C;
2:Relative humidity: ≤80%;
3:Air press: 86kPa-106kPa;
4:Work supply voltage: d.c.5V, allowed +5%, -10% relative tolerance;
5:Spo2 test range:should be around 70%-100%;
6:Spo2 test accurancy:70%-100% Tolerance allowed :±3%;
7:Pulse test range:should be 30bpm-245bpm;
8:Pulse test accuracy: ±6bpm;
9:The surface temperature of the skin part which touch with sensor's LED;
10:After 8 hours continue used on certain part, the surface temperature of the skin part which touch with sensor's LED should not over 41 °C.

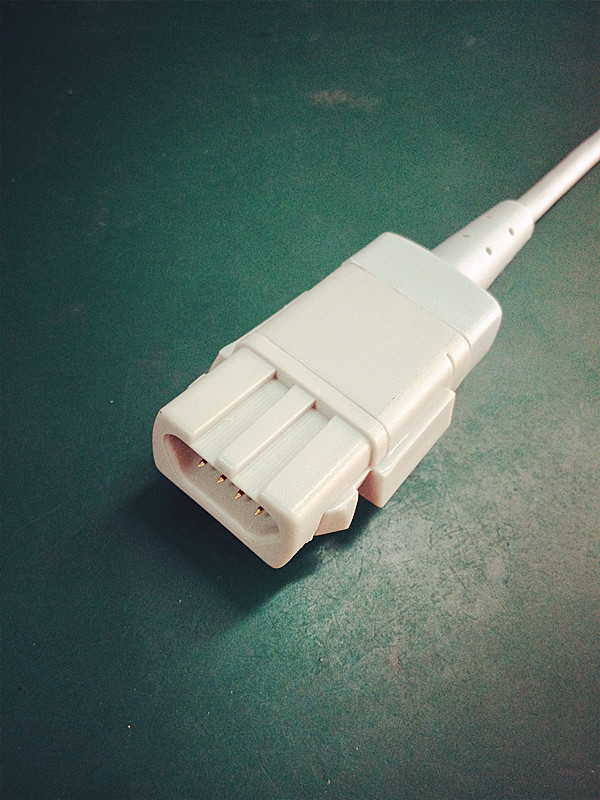

Connector:
3. Terms
| Condition&Terms |
| 1)T/T 100% payment in advance;EXW. |
| 2)Packing:Separate package,Then in outer box. |
| 3)Delivery leadtime:15 days upon receipt of payment. |
| 4)Method of shipment:By air(via DHL,UPS,TNT,FedEX…);By sea. |
| 5)Please kindly check and confirm the goods and then send us feedback. |
| 6)If you have any problems,please don not hesitate to contact us in two days. |
4. Service
| 1.High quality and competitive price | ||||
| 2.Sample order and small order are acceptable | ||||
| 3.We supply OEM/ODM service | ||||
| 4.Standard packing and timely delivery | ||||
| 5.Superior fiexibility and durability | ||||
| 6.We are a professional manufacturer in china | ||||
| 7.We have CE and ISO 13485 | ||||
| 8.Technology process:Cutting,welding,molding,assembly and testing |
5. Picture display
|
|
