Kontron Spo2 Probe Sensor 12 Pin Reusable SpO2 Sensor Adult Soft Rubber
1. Compatible Monitor
This is one piece type Spo2 sensors,no need spo2 extension cable.The round 6pin side
connect to the monitor directly.And It compatible monitor as below:7138/7840,7845,Minimon
7137,7337Micromon,Supermon,Kolormon,Trakmon
2. Types
| Kontron | |||
| HET-Code | OEM P/N | Description of Goods | Compatible Monitor |
| HA039 | 608010 | Kontron adult finger clip spo2 sensor,Rou.6pin | 7138/7840,7845,Minimon 7137 7337 Micromon, Supermon,Kolormon, Trakmon |
| HB039 | Kontron pediatric finger clip spo2 sensor,Rou.6pin | ||
| HC039 | Kontron adult soft tip spo2 sensor,Rou.6pin | ||
| HD039 | Kontron pediatric soft tip spo2 sensor,Rou.6pin | ||
| HE039 | Kontron neonatal wrap spo2 sensor,Rou.6pin | ||
| HF039 | Kontron adult ear clip spo2 sensor,Rou.6pin | ||
3. SpO2 Pulse Oximeter Sensor Technical Parameters
| LEDS: | Red | 660nm normal |
| Infrared | 880/905/940nm normal | |
| Test Range | Oxygen Saturation(%SpO2) | 0% to 100% |
| Pulse Rate(bpm) | 30 to 245 | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse Rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||
| Storage and Transport Environment | -10°C~+40°C | |
| Operating Temperature | +5°C~+40°C | |
| Operating/Storage/Transportation humidity | 0%~80% | |
Hyperbaric pressure | 86kPa-106 kPa | |
4. Specification
| character: reusable |
| material: plastic |
| packing: 130mm*180mm |
| colour: blue and grey |
| length: 1 metre and 3 metre |
| HS No.: 9018909000 |
| chip: Chinese, Korean and USA |
| Type of Size:Adult,Paediatric,Neonate |
| connector: Rou.6pin &Rou 12pin |
| brand: Huiertai kontron |
| Condition & Terms: T/T 100% payment in advance, FOB Shenzhen |
| Method of shipment: By air (via DHL, UPS, TNT, FedEX...), By sea |
| Delivery lead time: 15 days upon receipt of payment |
| Packing: Separate package, then in outer box |
| Warranty:1 year |
| Any require please do not hesitate to contact me on line, my MOB NO. is 0086-133 1668 2642 |
5. Advantages
Replacement SpO2 sensor with high quality compare to original up 90%~100%,but with reasonable cost save price about 10%~30% compare to original.Help you save the additional cost with acceptable high quality. No need a huge budget for a new original.this one piece type spo2 sensor no need adapter cable also can save the cost for you.

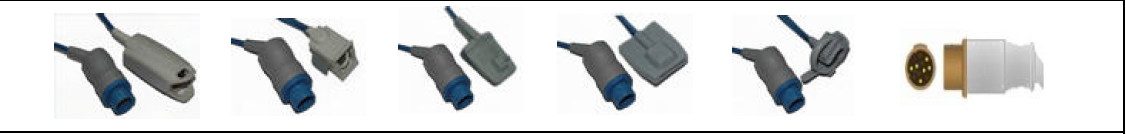

6. Related Picture display
|
|
