| Brand Name : | Mindray |
| Model Number : | HM622 |
| Certification : | ISO13485 |
| Price : | US$13-25/pc |
| Payment Terms : | T/T |
| Supply Ability : | 100,000pcs/Year |
| Delivery Time : | 10-15 days upon receipt of payment |

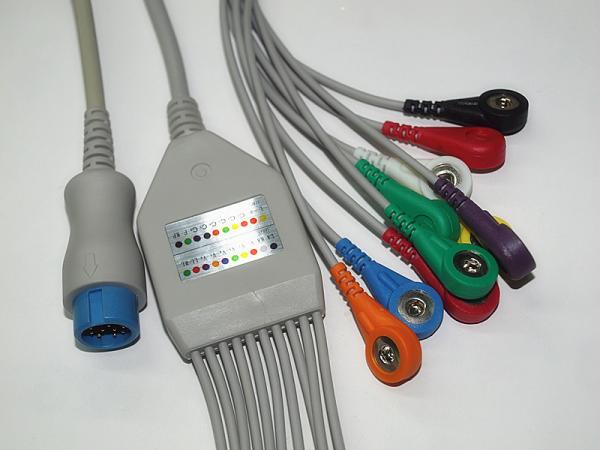

Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins
1. Specification
Storage and Transport Environment: -10°C~+40°C
Operating Temperature: +5°C~+40°C
Material:TPU cable, gold plated pin
2. Figure and Dimension
Circuit Diagram:
Connector with pins:
3. Packing
Wrap with transparent 185*220 PE plastic bag,each bag with 1 piece,put 1bag desiccant then put in outer carton.
4. Product advantages
| Cable and wire core and core, core and shielding and sheath the insulation resistance ≥100 Ω. |
| For cable and wire core and core, the core and shielding, exert AC1500V ±10% (RMS), 50 hz, 1 min, the leakage current is ≤ 0.25 mA. |
| Suitable for which has the function of anti defibrillating ecg cable.In ecg cable DC5000V 360 J± 20% energy shock, 3 times (each discharge time is 60 s + - 5 s), the electrical resistance change is not more than ± 10%. |
5. Kindly Note
| 1. Condition & Terms: | T/T 100% payment in advance, FOB Shenzhen. | ||
| 2. Method of shipment: | By air (via DHL, UPS, TNT, FedEX...), By sea. | ||
| 3. Delivery lead time: | 10 days upon receipt of payment. | ||
| 4. Packing: | Separate package, then in outer box. | ||
| 5. Please kindly confirm the goods and then send us feedback. | |||
| 6. If you have any problems, please do not hesitate to contact us in two days. | |||
| 7. This is sales Crystal Zhan, my mobile number is 0086-13316682642(24H Hot-line service)! | |||
6. About color code explaination
Classify the ecg cable is mainly through the appearance of confirmation to distinguish between different brands of monitoring instrument used in the main plug and ecg cable line is different, also can stick on the main plug or line according to the label to distinguish
| Color and letter code meaning on the stickers | ||||
| connected part | AHA | IEC | ||
| code | color | code | color | |
| left hand | LA | BLACK | L | YELLOW |
| right hand | RA | WHITE | R | RED |
| left foot | LL | RED | F | GREEN |
| right foot | RL | GREEN | N | BLACK |
| chest | V | BROWN | C | WHITE |
|
|
