Red One Piece ECG Lead Wires 3.2 Metre Bionet ECG Cable ISO13485
1. Description
Bionet One Piece 3 Lead Wires Compatible of Bionet BM3 and 5 Lead
wires compatible of BM5.
According to the different forms of the patient end connector ,divided into snap and clip 2 types.
Snap type lead wire, the patient end connectors for the button/snap, the connector cover in the ecg electrodes.Clip lead wire, the patient end connectors for clip/graber,the connector clamp on the ecg electrodes.
2. Types
| Brand | HET-Code | Compatibility | Description of Goods |
| Bionet | HM110A | Bionet BM3,BM5 | Bionet ECG cable,3-lead,12P,Snap,AHA |
| HM110B | Bionet ECG cable,3-lead,12P,Clip,AHA | ||
| HM110E | Bionet ECG cable,3-lead,12P,Snap,IEC | ||
| HM110F | Bionet ECG cable,3-lead,12P,Clip,IEC | ||
HM249A | Bionet ECG cable,5-lead,12P,Snap,AHA | ||
| HM249B | Bionet ECG cable,5-lead,12P,Clip,AHA | ||
| HM249E | Bionet ECG cable,5-lead,12P,Snap,IEC | ||
| HM249F | Bionet ECG cable,5-lead,12P,Clip,IEC | ||
| Connector |  | ||
3. All types of ECG Cable:
| 1 | One-piece ECG 10 leads, IEC or AHA, DIN 3.0. |
| 2 | One-piece ECG 10 leads, IEC or AHA, Banana 4.0. |
| 3 | One-piece ECG 10 leads, IEC or AHA, Snap. |
| 4 | One-piece ECG 10 leads, IEC or AHA, Clip. |
| 5 | ECG 10 trunk cable and leadwire set, IEC&AHA, Snap&Clip. |
| 6 | One-piece ECG 7 leads, IEC or AHA, Snap. |
| 7 | One-piece ECG 7 leads, IEC or AHA, Clip. |
| 8 | ECG 7 trunk cable and leadwire set, IEC&AHA, Snap&Clip. |
| 9 | One-piece ECG 5 leads, IEC or AHA, Snap. |
| 10 | One-piece ECG 5 leads, IEC or AHA, Clip. |
| 11 | ECG 5 trunk cable and leadwire set, IEC&AHA, Snap&Clip. |
| 12 | One-piece ECG 3 leads, IEC or AHA, Snap. |
| 13 | One-piece ECG 3 leads, IEC or AHA, Clip. |
| 14 | ECG 3 trunk cable and leadwire set, IEC&AHA, Snap&Clip. |
4. Products' Period of Validity:
| All Ranges of Our Products | Warranty Period |
| Reusable Spo2 Sensor | 12 Months |
| Disposable Spo2 Sensor | 3 Months |
| Spo2 Extension Cable | 12 Months |
| ECG&EKG Cable | 12 Months |
| Reusable NIBP Cuffs& Airhose Tube | 6 Months |
| Disposable NIBP Cuffs | 3 Months |
| Temperature probe | 6 Months |
| IBP Cable | 12 Months |
| Connectors | 12 Months |
5. Advantages
Lead wire all surfaces clean with medical alcohol to wipe after disinfection and hardware electrical performance, mechanical performance remains the same.Under the provisions of the permissible highest temperature of, namely: the wire is bent or may have been bending: 60 ℃;Conductor is not bent or unlikely to be bend: 75 ℃.The appearance, structure, electrical properties, mechanical properties of normal.Push and Pull performance very good:
| parts | push and pull times | push and pull tension | remark |
| cable plug and mornitor | 300 | ≥15.5 | |
| electrode connector and electrodes | 500 | ≥4.5 | except the clip type |

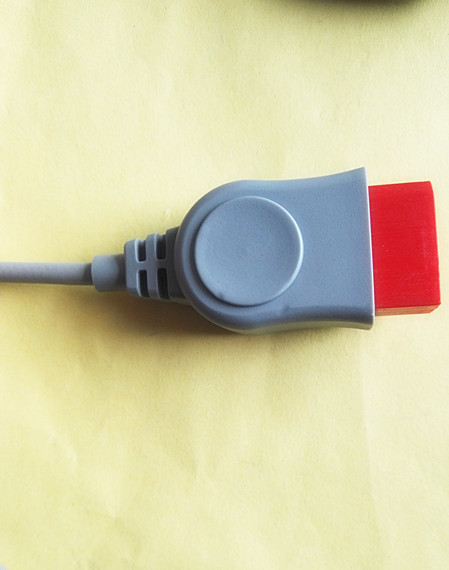

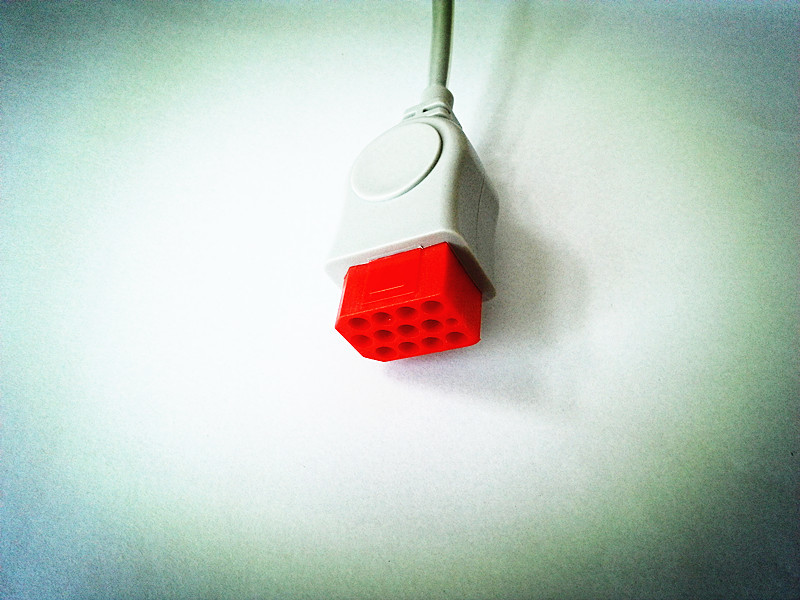

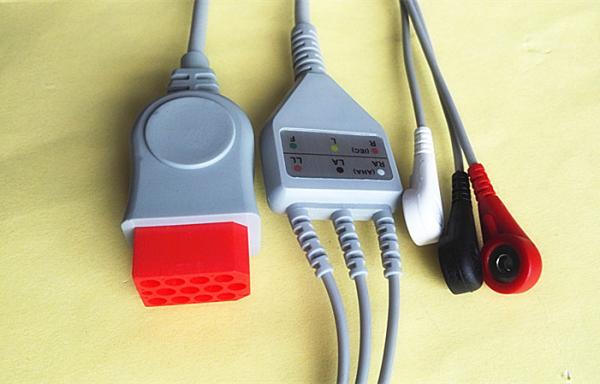

6. Picture Display
|
|
