Shenzhen Huiertai Electronic Tech. Co., Ltd. Hongkong Huierpu Medical Co.,Ltd --Honesty, innovation --Continuously exceed, pursuit of perfection
9 Years
| Ask Lasest Price | |
| Brand Name : | GE - Rozinn |
| Model Number : | HM080,HM180,HM186 |
| Certification : | ISO13485,CE |
| Price : | US$12-25/pc |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100,000pcs/Year |
| Delivery Time : | 10-15 days upon receipt of payment |
Black Brush 12 Pins GE Rozinn 10 Lead Ecg Cable Din Style Medical Cables
1. Description
Classify the ecg cable is mainly through the appearance of confirmation to distinguish between different brands of monitoring instrument used in the main plug and ecg cable line is different, also can stick on the main plug or line according to the label to distinguish
Eg. 12 leads ecg cable stickers
| Color and letter code meaning on the stickers | ||||
| connected part | AHA | IEC | ||
| code | color | code | color | |
| left hand | LA | BLACK | L | YELLOW |
| right hand | RA | WHITE | R | RED |
| left foot | LL | RED | F | GREEN |
| right foot | RL | GREEN | N | BLACK |
| chest | V | BROWN | C | WHITE |
2. Types
| Brand | HET-Code | Description of Goods |
| GE-Rozinn | HM164 | GE-Rozinn Leadwire set,10-lead |
| HM080 | GE-Rozinn D Type Trunk cable,5-lead | |
| HM180 | GE-Rozinn D Type Trunk cable,7-lead | |
| HM186 | GE-Rozinn D Type Trunk cable,10-lead | |
| Photo |  | |
3. Features:
• Patient Safety
• Patient Comfort
• Double shield structures
• Improve the anti-interference performance
• Assure the signal accurate
• Excellent Bio-compatible
• Ideal for both adult and pediatric patients
• Latex-free
4. Specification
| P/N | OEM P/N | Description |
| GE - Rozinn Din Style Trunk Cable | ||
| Connector | Black Brush 12 Pins |  |
| 5 leads D style | 7 leads D style | 10 leads D style |
 |  |  |
| Biocompatibility: All patient contact materials are latex free and have been tested according to ISO 10993-5,ISO 10993-10 | ||
| Storage and Transport Environment: -5°C~+40°C | ||
| Humidity: Operating/Storage/Transportation 0% to 80% non condensing Altitude | ||
| Hyperbaric Pressure 86kPa - 106kPa | ||
| Operating Temperature: 0°C~+40°C | ||
| Material: TPU Cable | ||
| Color code: AHA | ||
| Leads: 5,7,10 Lead | ||
5. Advantages
Cable and wire core and core, core and shielding and sheath the insulation resistance ≥100 Ω.
For cable and wire core and core, the core and shielding, exert AC1500V ±10% (RMS), 50 hz, 1 min, the leakage current is ≤ 0.25 mA.
Suitable for which has the function of anti defibrillating ecg cable.In ecg cable DC5000V 360 J± 20% energy shock, 3 times (each discharge time is 60 s + - 5 s), the electrical resistance change is not more than ± 10%.

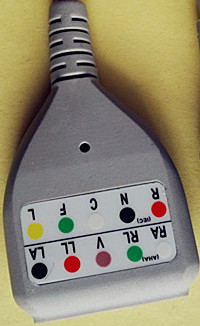

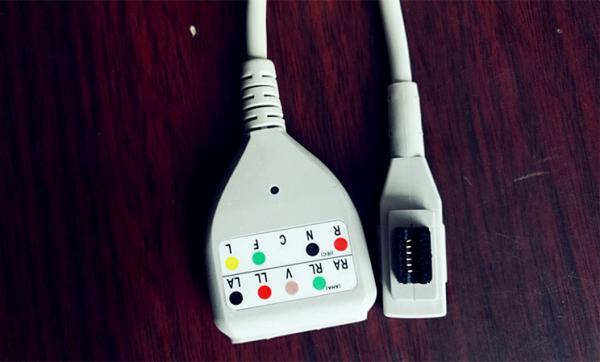

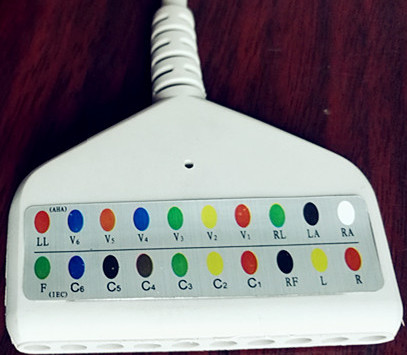

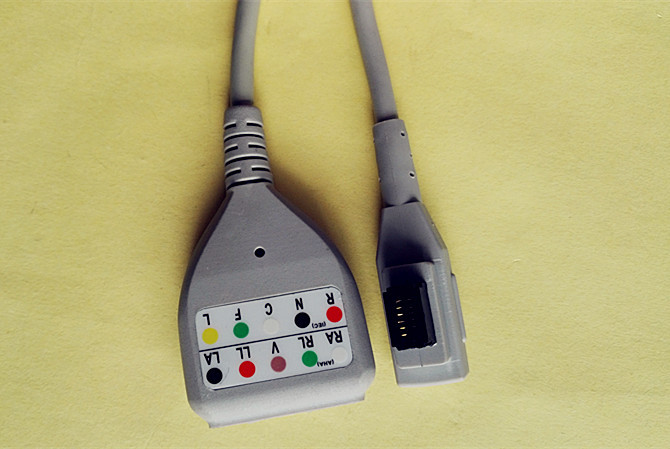

6. Picture Display
|
|
