Shenzhen Huiertai Electronic Tech. Co., Ltd. Hongkong Huierpu Medical Co.,Ltd --Honesty, innovation --Continuously exceed, pursuit of perfection
9 Years
| Ask Lasest Price | |
| Brand Name : | Datex |
| Model Number : | HB002,HB003 |
| Certification : | ISO13485 , CE |
| Price : | US$12-23/PC |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100,000pcs/Year |
| Delivery Time : | 10-15 working days after received your payment |
Datex Pediatric Reusable Spo2 Sensors DB9 9Pin or Rou 10Pin Spo2 Probe
1. Description
Datex Pediatric Finger Clip Spo2 Probe has specification as below:
* Ambient temperature: 0 to 40°C(32 to 104°F)
* Relative humidity: 0% to 80%
* Hyperbaric pressure: 86kPa-106kPa
* Materials: Quality TPU jacket cable, 2.5m + 0.9m length, gray; Medical PVC strain relief; Gold *plated pins and Nylon plug
It works with the following patient monitors: (Datex-Ohmeda) AS/3, CS/3, CH/S, CH/2S, CH-RS, CG/2S, Cardiocap I / II / 5, Capnomac Ultima, Light Monitor, M-Estpr, Oscar II, OSP-200, Satlite Trans, Satlite Trans Plus , System 5, ULTS00, ULTSIO, ULTSVI, ULTSVO and Rou.
2. Types
| Datex | |||
| HET-Code | OEM P/N | Description of Goods | Compatible Monitor |
| HA002 | SAF-F | Datex adult finger clip spo2 sensor,DB9-9Pin | AS/3,CS/3, AS/5, CH/S,CH/RSCG/2S, CARDIOCAPI-II, Capnomac Ultima |
| HB002 | Datex pediatric finger clip spo2 sensor,DB9-9Pin | ||
| HC002 | Datex adult soft tip spo2 sensor,DB9-9Pin | ||
| HD002 | Datex pediatric soft tip spo2 sensor,DB9-9Pin | ||
| HE002 | Datex neonatal wrap spo2 sensor,DB9-9Pin | ||
| HF002 | Datex adult ear clip spo2 sensor,DB9-9Pin | ||
| HA003 | OXY-F4-N | Datex adult finger clip spo2 sensor,Round 10pin | Light monitor Satlite, Oscar |
| HB003 | Datex pediatric finger clip spo2 sensor,Round 10pin | ||
| HC003 | Datex adult soft tip spo2 sensor,Round 10pin | ||
| HD003 | Datex pediatric soft tip spo2 sensor,Round 10pin | ||
| HE003 | Datex neonatal wrap spo2 sensor,Round 10pin | ||
| HF003 | Datex adult ear clip spo2 sensor,Round 10pin |
3. Specification
| Character: | Reusable |
| Material: | TPU |
| Packing bag: | 130mm * 180mm |
| Colour: | Blue and Grey |
| Length: | 1 metre and 3 metre |
| Type: | Pediatric |
| Chin type: | Chinese,Korean and USA |
| Connector: | Rou. 10 pin |
| Product Group: | Adult,Pediatric,Neonatal |
Brand: | Detax |
| Condition & Terms: | T/T 100% payment in advance, FOB Shenzhen |
| Shipment: | By air (via DHL, UPS, TNT, FedEX...), By sea |
| Delivery Lead Time: | 10 days upon receipt of payment |
| Packing Way: | Separate package, then in outer box |
| Warranty: | 1 year |
Any require please do not hesitate to contact me on line, my MOB NO. is 0086-133 1668 2642
4. Advantages
Appearance sizes strictly conform to the requirements of design drawings, little variation in permissible range,Wire and plug, plug and instrument socket contact no loose fastening. mechanical property is good, For example tension as below datas:
| About Parts | Tension(N) | |||
| main plug and wire | ≥31 | |||
| Cable materials | ≥45 | |||
| wire and sensor | Adult finger clip | Pediatric finger clip | Adult soft tip | Neonatal wrap |
| ≥15.5 | ≥15.5 | ≥10 | ≥5 | |

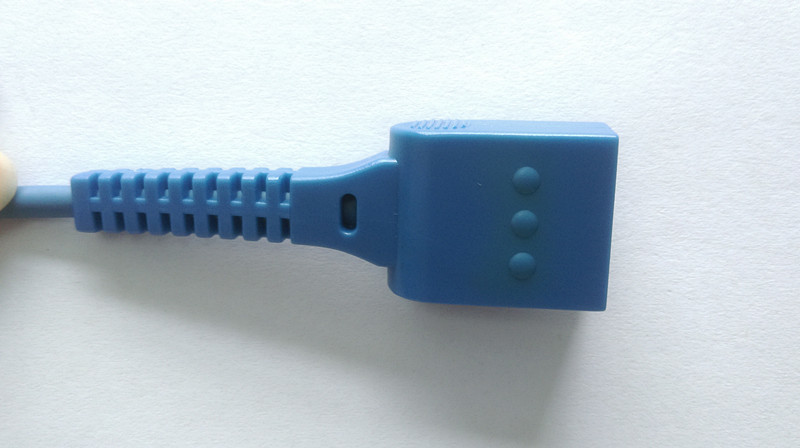

5. Picture display
|
|
